GoodWe IV GW GW1500-XS(+DC-SWITCH/WIFI)

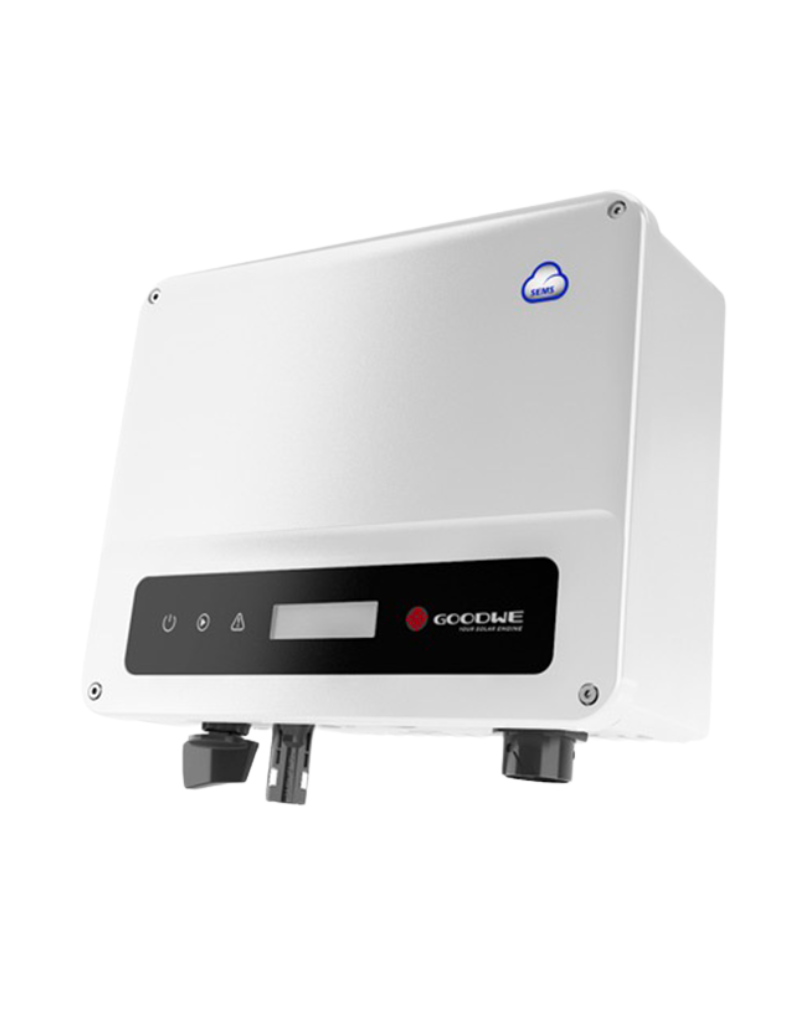

GoodWe GW1500-XS Single Phase Inverter

XS series model from GoodWe is an ultra-small single phase, 1-MPPT residential solar inverter specifically designed to bring comfort and quiet operation as well as high efficiency to households. Its capacity ranges from 0.7kW to 3.0kW and its most outstanding characteristics are its lightweight, which is 5.8kg, and it's extremely small size, equivalent to an A4-sized piece of paper, which makes it particularly easy to carry & install.

XS series inverters are equipped with 30% DC oversizing capability which allows full load output during extreme weather conditions and it’s able to achieve a maximum European efficiency of 97.2%.

 Smart Control & Monitoring

          Load consumption monitoring

          Power output limit

  Excellent security and reliability

           Ingress protection IP65

           Quality and robust components

  High power output

            AC output overload up to 110%.

            Starting voltage 40V

  Friendly and thoughtful design

             Fanless design for quiet operation

             light weight

An optional LAN/WIFI communication offers customers different monitoring methods to cater for different needs. Customers are able to choose the most convenient way to monitor their solar systems. It also allows the customer to switch into another monitoring method after installation.

• Max. DC Input Power: 1950 W
• MPPT Input voltage range: 40-450 V
• Nominal Output Voltage: 230 V
• Protection Rating: IP65
• Display / Communication: LCD & LED / WiFi or LAN or RS485
• Size (Width x Height x Depth, mm): 295 x 230 x 113
• Weight: 5.8 kg
