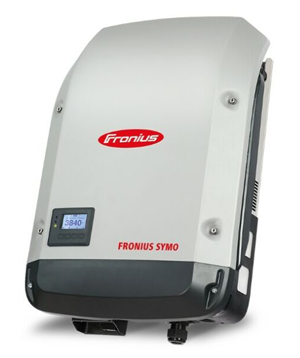

Fronius IV FR SYMO 8.2-3-M
Τριφασικός Μετατροπέας Ρεύματος Χωρίς Μετασχηματιστή
Fronius IV FR SYMO 8.2-3-M
Fronius IV FR SYMO 8.2-3-M
Περιγραφή
Fronius Symo Inverter 8.2kW – 8.2-3M
The Fronius Symo, 8.2kw three-phase device is the ideal inverter for residential systems with three phase connections. Its innovative SuperFlex Design provides maximum flexibility in system design, while the SnapINverter mounting system makes installation and maintenance easier than ever before.
The included communication package, with WLAN, energy management, several interfaces allows the Fronius inverters to communicate with the user, the PV system and the grid.
Maximum usability, maximum performance and the most reliable inverter on the market.
TECHNICAL DATA
INPUT DATA
|
Number of MPP trackers |
2 |
|
Max. input current (Idc max) |
16 / 16 A |
|
Max. short circuit current, module array* |
31 / 31 A |
|
DC input voltage range (Udc min - Udc max) |
150 - 1000 V |
|
Feed-in start voltage (Udc start) |
200 V |
|
Nominal input voltage (Udc,r) |
595 V |
|
MPP voltage range (Umpp min - Umpp max) |
267 - 800 V |
|
Usable MPP voltage range |
150 - 800 V |
|
Number of DC connections |
2 + 2 |
|
Max. PV generator power (Pdc max) |
16,4 kWpeak |
OUTPUT DATA
|
AC nominal output (Pac,r) |
8200 W |
|
Max. output power (Pac max) |
8200 VA |
|
AC output current (Iac nom) |
11,8 A |
|
Grid connection (Uac,r) |
3~ NPE 400/230, 3~ NPE 380/220 V |
|
AC voltage range (Umin - Umax) |
150 - 280 V |
|
Frequency (fr) |
50 / 60 Hz |
|
Frequency range (fmin - fmax) |
45 - 65 Hz |
|
Total harmonic distortion |
< 3 % |
|
Power factor (cos φac,r) |
0,85 - 1 ind,/cap, |
GENERAL DATA
|
Width |
431 mm |
|
Height |
645 mm |
|
Depth |
204 mm |
|
Weight |
21,9 kg |
|
Degree of protection |
IP 65 |
|
Protection class |
1 |
|
Overvoltage category (DC / AC) 1) |
2 / 3 |
|
Night-time consumption |
< 1 W |
|
Inverter design |
Transformerless |
|
Cooling |
Regulated air cooling |
|
Installation |
Indoors and outdoors |
|
Ambient temperature range |
-25°C - +60°C |
|
Permitted humidity |
0 - 100 % |
|
Max. altitude 2) |
2,000 m / 3,400 m |
|
DC connection technology |
4x DC+ and 4x DC- screw terminals 2.5 - 16 mm² (16 mm² without ferrules) |
|
AC connection technology |
5-pin AC screw terminals 2.5 - 16 mm² (16 mm² without ferrules) |
|
Certificates and compliance with standards |
ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G83/2, UNE 206007-1, SI 4777, CEI 0-21, NRS 097 |
|
Interference emission class |
B |
EFFICIENCY
|
Max. efficiency (PV - grid) |
98 % |
|
European efficiency (ηEU) |
97,7 % |
|
η at 5% Pac,r 3) |
89,8 / 93,8 / 90,6 % |
|
η at 10% Pac,r 3) |
92,8 / 96,1 / 94,5 % |
|
η at 20% Pac,r 3) |
95,0 / 97,6 / 96,6 % |
|
η at 25% Pac,r 3) |
95,5 / 97,7 / 97,0 % |
|
η at 30% Pac,r 3) |
95,8 / 97,8 / 97,2 % |
|
η at 50% Pac,r 3) |
96,2 / 98,0 / 97,6 % |
|
η at 75% Pac,r 3) |
96,2 / 98,0 / 97,6 % |
|
η at 100% Pac,r 3) |
96,0 / 97,8 / 97,5 % |
|
MPP adaptation efficiency |
> 99,9 % |
PROTECTION DEVICES
|
DC insulation measurement |
Ja |
|
Overload behaviour |
Arbeitspunktverschiebung, Leistungsbegrenzung |
|
DC disconnector |
Ja |
|
DC Reverse polarity protection |
Ja |
INTERFACES
|
WLAN / Ethernet LAN |
Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
|
6 inputs and 4 digital inputs/outputs |
Anbindung an Rundsteuerempfänger |
|
USB (type A socket) 4) |
Datenlogging, Wechselrichter-Update per USB-Stick |
|
2x RS422 (RJ45 socket) 4) |
Fronius Solar Net |
|
Signalling output 4) |
Energiemanagement (potentialfreier Relaisausgang) |
|
Datalogger and web server |
Integriert |
|
External input 4) |
Anbindung an S0-Zähler / Auswertung Überspannungsschutz |
|
RS485 |
Modbus RTU SunSpec oder Zähleranbindung |
