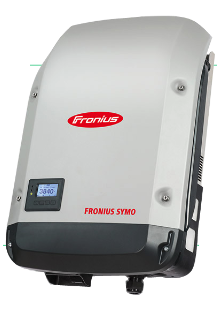

Fronius IV FR SYMO 12.5-3-M
Τριφασικός Μετατροπέας Ρεύματος Χωρίς Μετασχηματιστή
Fronius IV FR SYMO 12.5-3-M
Fronius IV FR SYMO 12.5-3-M
Περιγραφή
Fronius IV FR SYMO 12.5-3-M
Maximum flexibility for the applications of tomorrow.
Boasting power categories ranging from 3.0 to 20.0 kW, the transformerless Fronius Symo is the three-phase inverter for systems of every size. The high system voltage, wide input voltage range and two MPP trackers ensure maximum flexibility in system design. The standard interface to the internet via WLAN or Ethernet and the ease of integration of third-party components make the Fronius Symo one of the most communicative inverters on the market.
INPUT DATA
|
Number of MPP trackers |
2 |
|
Max. input current (Idc max) |
27,0 / 16,5 A |
|
Max. short circuit current, module array* |
56,0 / 34,0 A |
|
DC input voltage range (Udc min - Udc max) |
200 - 1000 V |
|
Feed-in start voltage (Udc start) |
200 V |
|
Nominal input voltage (Udc,r) |
600 V |
|
MPP voltage range (Umpp min - Umpp max) |
320 - 800 V |
|
Usable MPP voltage range |
200 - 800 V |
|
Number of DC connections |
3 + 3 |
|
Max. PV generator power (Pdc max) |
18,8 kWpeak |
OUTPUT DATA
|
AC nominal output (Pac,r) |
12,5 kW |
|
Max. output power (Pac max) |
12,5 kVA |
|
AC output current (Iac nom) |
18 A |
|
Grid connection (Uac,r) |
3~ NPE 400/230, 3~ NPE 380/220 V |
|
AC voltage range (Umin - Umax) |
150 - 280 V |
|
Frequency (fr) |
50 / 60 Hz |
|
Frequency range (fmin - fmax) |
45 - 65 Hz |
|
Total harmonic distortion |
2,0 % |
|
Power factor (cos φac,r) |
0 - 1 ind,/cap, |
GENERAL DATA
|
Width |
510 mm |
|
Height |
725 mm |
|
Depth |
225 mm |
|
Weight |
34,8 kg |
|
Degree of protection |
IP 66 |
|
Protection class |
1 |
|
Overvoltage category (DC / AC) 1) |
2 / 3 |
|
Night-time consumption |
< 1 W |
|
Inverter design |
Transformerless |
|
Cooling |
Regulated air cooling |
|
Installation |
Indoors and outdoors |
|
Ambient temperature range |
-40°C - +60°C |
|
Permitted humidity |
0 - 100 % |
|
Max. altitude 2) |
2,000 m / 3,400 m |
|
DC connection technology |
6x DC+ and 6x DC- screw terminals 2.5 - 16 mm² |
|
AC connection technology |
5-pin AC screw terminals 2.5 - 16 mm² |
|
Certificates and compliance with standards |
ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G83/2, UNE 206007-1, SI 4777, CEI 0-16, CEI 0-21, NRS 097 |
|
Interference emission class |
B |
EFFICIENCY
|
Max. efficiency (PV - grid) |
98 % |
|
European efficiency (ηEU) |
97,6 % |
|
η at 5% Pac,r 3) |
88,7 / 93,1 / 90,1 % |
|
η at 10% Pac,r 3) |
92,9 / 96,1 / 94,6 % |
|
η at 20% Pac,r 3) |
95,4 / 97,3 / 96,6 % |
|
η at 25% Pac,r 3) |
95,6 / 97,6 / 97,0 % |
|
η at 30% Pac,r 3) |
95,9 / 97,7 / 97,2 % |
|
η at 50% Pac,r 3) |
96,4 / 98,0 / 97,5 % |
|
η at 75% Pac,r 3) |
96,5 / 98,0 / 97,6 % |
|
η at 100% Pac,r 3) |
96,5 / 97,8 / 97,6 % |
|
MPP adaptation efficiency |
> 99,9 % |
PROTECTION DEVICES
|
DC insulation measurement |
Yes |
|
Overload behaviour |
Operating point shift, power limitation |
|
DC disconnector |
Yes |
|
DC Reverse polarity protection |
Yes |
INTERFACES
|
WLAN / Ethernet LAN |
Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
|
6 inputs and 4 digital inputs/outputs |
Interface to ripple control receiver |
|
USB (type A socket) 4) |
Data logging, inverter update via USB flash drive |
|
2x RS422 (RJ45 socket) 4) |
Fronius Solar Net |
|
Signalling output 4) |
Energy management (floating relay output) |
|
Datalogger and web server |
Integrated |
|
External input 4) |
S0 meter connection / Evaluation of overvoltage protection |
|
RS485 |
Modbus RTU SunSpec or meter connection |
