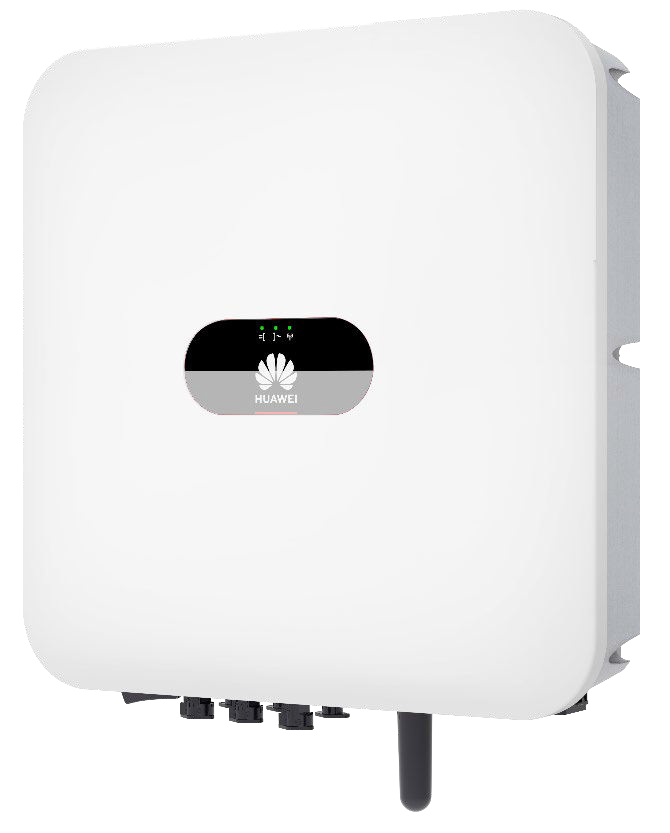

HUAWEI IV HU SUN 2000 3.68KTL L1
Μονοφασικός Μετατροπέας Ρεύματος Χωρίς Μετασχηματιστή
HUAWEI IV HU SUN2000 3.68KTL L1
HUAWEI IV HU SUN2000 3.68KTL L1
Περιγραφή
Μονοφασικός Μετατροπέας Ρεύματος Χωρίς Μετασχηματιστή
HUAWEI IV HU SUN 2000 3.68KTL L1
TECHNICAL SPECIFICATION
|
Technical Specification |
SUN2000 -2KTL-L1 |
SUN2000 -3KTL-L1 |
SUN2000 -3.68KTL-L1 |
SUN2000 -4KTL-L1 |
SUN2000 -4.6KTL-L1 |
SUN2000 -5KTL-L1 |
SUN2000 -6KTL-L1 |
|
Efficiency |
|||||||
|
Max. efficiency |
98.2 % |
98.3 % |
98.4 % |
98.4 % |
98.4 % |
98.4 % |
98.4 % |
|
European weighted efficiency |
96.7 % |
97.3 % |
97.3 % |
97.5 % |
97.7 % |
97.8 % |
97.8 % |
|
Input (PV) |
|||||||
|
Recommended max. PV power 1 |
3,000 Wp |
4,500 Wp |
5,520 Wp |
6,000 Wp |
6,900 Wp |
7,500 Wp |
9,000 Wp |
|
Max. input voltage |
600 V 2 |
||||||
|
Start-up voltage |
100 V |
||||||
|
MPPT operating voltage range |
90 V – 560 V 2 |
||||||
|
Rated input voltage |
360 V |
||||||
|
Max. input current per MPPT |
12.5 A |
||||||
|
Max. short-circuit current |
18 A |
||||||
|
Number of MPP trackers |
2 |
||||||
|
Max. input number per MPP tracker |
1 |
||||||
|
Input (DC Battery) |
|||||||
|
Compatible Battery |
LG Chem RESU 7H_R / 10H_R |
||||||
|
Operating voltage range |
350 ~ 450 Vdc |
||||||
|
Max operating current |
10 A @7H_R / 15 A @10H_R |
||||||
|
Max charge power |
3,500 W @7H_R / 5,000 W @10H_R |
||||||
|
Max discharge Power @7H_R |
2,200 W |
3,300 W |
3,500 W |
3,500 W |
3,500 W |
3,500 W |
3,500 W |
|
Max discharge Power @10H_R |
2,200 W |
3,300 W |
3,680 W |
4,400 W |
4,600 W |
5,000 W |
5,000 W |
|
Compatible Battery |
HUAWEI Smart LUNA2000 ESS Battery 5kWh – 30kWh |
||||||
|
Operating voltage range |
350 ~ 560 Vdc |
||||||
|
Max operating current |
15 A |
||||||
|
Max charge Power |
5,000 W 3 |
||||||
|
Max discharge Power |
2,200 W |
3,300 W |
3,680 W |
4,400 W |
4,600 W |
5,000 W |
5,000 W |
|
Output (On Grid) |
|||||||
|
Grid connection |
Single phase |
||||||
|
Rated output power |
2,000 W |
3,000 W |
3,680 W |
4,000 W |
4,600 W |
5,000 W 4 |
6,000 W |
|
Max. apparent power |
2,200 VA |
3,300 VA |
3,680 VA |
4,400 VA |
5,000 VA 5 |
5,500 VA 6 |
6,000 VA |
|
Rated output voltage |
220 Vac / 230 Vac / 240 Vac |
||||||
|
Rated AC grid frequency |
50 Hz / 60 Hz |
||||||
|
Max. output current |
10 A |
15 A |
16 A |
20 A |
23 A 7 |
25 A 7 |
27.3 A |
|
Adjustable power factor |
0.8 leading ... 0.8 lagging |
||||||
|
Max. total harmonic distortion |
≤ 3 % |
||||||
|
Output (Off Grid) |
|||||||
|
Backup Box (Optional) |
Backup Box – B0 |
||||||
|
Maximum apparent power |
2,000 VA |
3,000 VA |
3,680 VA |
4,000 VA |
4,600 VA |
5,000 VA |
5,000 VA |
|
Rated output voltage |
9.1 A |
13.6 A |
16.7 A 0 |
220 V / 230 V 18.2 A 20.9 A .8 leading ... 0.8 lagging |
22.7 A |
22.7 A |
|
|
Maximum output current |
|||||||
|
Power factor range |
|||||||
|
Technical Specification |
SUN2000 -2KTL-L1 |
SUN2000 -3KTL-L1 |
SUN2000 -3.68KTL-L1 |
SUN2000 -4KTL-L1 |
SUN2000 -4.6KTL-L1 |
SUN2000 -5KTL-L1 |
SUN2000 -6KTL-L11 |
|
General Data |
|
|
Operating temperature range |
-25 ~ +60 °C |
|
Relative operating humidity |
0 %RH～100 %RH |
|
Max. operating altitude |
4,000 m (13,123 ft.) (Derating above 2000 m) |
|
Cooling |
Natural convection |
|
Display |
LED indicators; integrated WLAN + FusionSolar APP |
|
Communication |
RS485, WLAN via inverter built-in WLAN module Ethernet via Smart Dongle-WLAN-FE (Optional); 4G / 3G / 2G via Smart Dongle-4G (Optional) |
|
Weight (incl. mounting bracket) |
12.0 kg (26.5 lb) |
|
Dimension (incl. mounting bracket) |
365mm * 365mm * 156 mm (14.4 x 14.4 x 6.1 inch) |
|
Degree of protection |
IP65 |
|
Nighttime power consumption |
< 2.5 W |
|
Optimizer Compatibility |
|
|
DC MBUS compatible optimizer |
SUN2000-450W-P |
|
Standard Compliance (more available upon request) |
|
|
Safety |
EN/IEC 62109-1, EN/IEC 62109-2 |
|
Grid connection standards |
G98, G99, EN 50549-1, CEI 0-21, VDE-AR-N-4105, AS 4777.2, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727, IEC62116 |
|
Technical Specification |
SUN2000 -2KTL-L1 |
SUN2000 -3KTL-L1 |
SUN2000 -3.68KTL-L1 |
SUN2000 -4KTL-L1 |
SUN2000 -4.6KTL-L1 |
SUN2000 -5KTL-L1 |
SUN2000 -6KTL-L11 |
|
Protection & Feature |
|
|
Anti-Islanding protection |
Yes |
|
DC reverse polarity protection |
Yes |
|
Insulation monitoring |
Yes |
|
DC surge protection |
Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 |
|
AC surge protection |
Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 |
|
Residual current monitoring |
Yes |
|
AC overcurrent protection |
Yes |
|
AC short-circuit protection |
Yes |
|
AC overvoltage protection |
Yes |
|
Over-heat protection |
Yes |
|
Arc fault protection |
Yes |
|
Battery reverse charging from grid |
Yes |
|
General Data |
|
|
Operating temperature range |
-25 ~ +60 °C |
|
Relative operating humidity |
0 %RH～100 %RH |
|
Max. operating altitude |
4,000 m (13,123 ft.) (Derating above 2000 m) |
|
Cooling |
Natural convection |
|
Display |
LED indicators; integrated WLAN + FusionSolar APP |
|
Communication |
RS485, WLAN via inverter built-in WLAN module Ethernet via Smart Dongle-WLAN-FE (Optional); 4G / 3G / 2G via Smart Dongle-4G (Optional) |
|
Weight (incl. mounting bracket) |
12.0 kg (26.5 lb) |
|
Dimension (incl. mounting bracket) |
365mm * 365mm * 156 mm (14.4 x 14.4 x 6.1 inch) |
|
Degree of protection |
IP65 |
|
Nighttime power consumption |
< 2.5 W |
|
Optimizer Compatibility |
|
|
DC MBUS compatible optimizer |
SUN2000-450W-P |
|
Standard Compliance (more available upon request) |
|
|
Safety |
EN/IEC 62109-1, EN/IEC 62109-2 |
|
Grid connection standards |
G98, G99, EN 50549-1, CEI 0-21, VDE-AR-N-4105, AS 4777.2, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727, IEC62116 |
|
Technical Specification |
SUN2000 -2KTL-L1 |
SUN2000 -3KTL-L1 |
SUN2000 -3.68KTL-L1 |
SUN2000 -4KTL-L1 |
SUN2000 -4.6KTL-L1 |
SUN2000 -5KTL-L1 |
SUN2000 -6KTL-L11 |
|
Protection & Feature |
|
|
Anti-Islanding protection |
Yes |
|
DC reverse polarity protection |
Yes |
|
Insulation monitoring |
Yes |
|
DC surge protection |
Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 |
|
AC surge protection |
Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 |
|
Residual current monitoring |
Yes |
|
AC overcurrent protection |
Yes |
|
AC short-circuit protection |
Yes |
|
AC overvoltage protection |
Yes |
|
Over-heat protection |
Yes |
|
Arc fault protection |
Yes |
|
Battery reverse charging from grid |
Yes |
|
General Data |
|
|
Operating temperature range |
-25 ~ +60 °C |
|
Relative operating humidity |
0 %RH～100 %RH |
|
Max. operating altitude |
4,000 m (13,123 ft.) (Derating above 2000 m) |
|
Cooling |
Natural convection |
|
Display |
LED indicators; integrated WLAN + FusionSolar APP |
|
Communication |
RS485, WLAN via inverter built-in WLAN module Ethernet via Smart Dongle-WLAN-FE (Optional); 4G / 3G / 2G via Smart Dongle-4G (Optional) |
|
Weight (incl. mounting bracket) |
12.0 kg (26.5 lb) |
|
Dimension (incl. mounting bracket) |
365mm * 365mm * 156 mm (14.4 x 14.4 x 6.1 inch) |
|
Degree of protection |
IP65 |
|
Nighttime power consumption |
< 2.5 W |
|
Optimizer Compatibility |
|
|
DC MBUS compatible optimizer |
SUN2000-450W-P |
|
Standard Compliance (more available upon request) |
|
|
Safety |
EN/IEC 62109-1, EN/IEC 62109-2 |
|
Grid connection standards |
G98, G99, EN 50549-1, CEI 0-21, VDE-AR-N-4105, AS 4777.2, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727, IEC62116 |
