RECOM Puma 660W shingled bifacial double glass

PDFΕκτύπωσηEmail

347,20 €
280,00 €
67,20 €

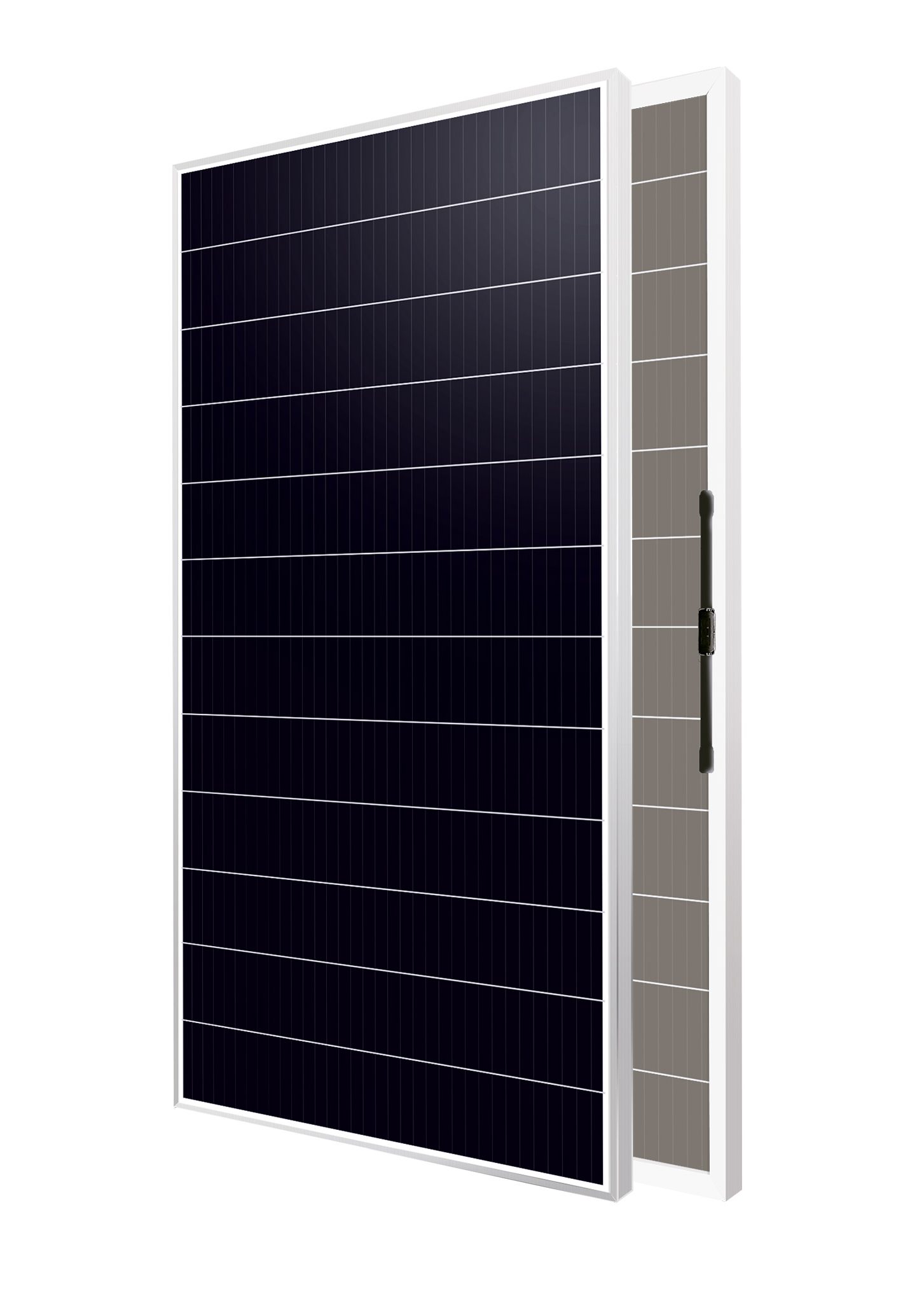

Puma 660W shingled bifacial double glass panel
Ρωτήστε για το προϊόν
Περιγραφή

Product Characteristics

Model No.
635 640 645 650 655 660
Warranty
Product Warranty 15 Years
Power Warranty 15 Years of 90.3% Output Power, 25 Years of 84.8% Output Power
Electrical Data at STC
Maximum Power (Pmax)
635 Wp 640 Wp 645 Wp 650 Wp 655 Wp 660 Wp
Voltage at Maximum Power (Vmpp)
37.3 V 37.4 V 37.5 V 37.6 V 37.7 V 37.8 V
Current at Maximum Power (Impp)
17.02 A 17.111 A 7.2 A 17.29 A 17.37 A 17.46 A
Open Circuit Voltage (Voc)
45.8 V 45.9 V 46 V 46.1 V 46.2 V 46.3 V
Short Circuit Current (Isc)
17.76 A 17.85 A 17.94 A 18.03 A 18.12 A 18.21 A
Panel Efficiency
20.7 % 20.9 % 21 % 21.2 % 21.3 % 21.5 %
Power Tolerance (Positive)
+ 5 % + 5 % + 5 % + 5 % + 5 % + 5 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)
478 Wp 482 Wp 486 Wp 489 Wp 493 Wp 497 Wp
Voltage at Maximum Power (Vmpp)
35.6 V 35.7 V 35.7 V 35.8 V 35.9 V 36 V
Current at Maximum Power (Impp)
13.45 A 13.52 A 13.59 A 13.65 A 13.72 A 13.79 A
Open Circuit Voltage (Voc)
43.7 V 43.8 V 43.9 V 43.9 V 44 V 44.1 V
Short Circuit Current (Isc)
14.33 A 14.4 A 14.48 A 14.55 A 14.62 A 14.69 A
Temperature 42.3±2 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.34 %/°C
Temperature Coefficient of Voc -0.27 %/°C
Temperature Coefficient of Isc 0.04 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 20 A
Material Data
Panel Dimension (H/W/D)  2355x1303x35 mm
Weight 34 kg
Cell Type PERC
Cell Number 408
Glass Type Anti-reflection Coating, Tempered
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium Alloy
Junction Box Diodes 3
Junction Box Protection Class IP 68
Connector Type MC4
Cable Crossection 4 mm2
Cable Length 800 mm
